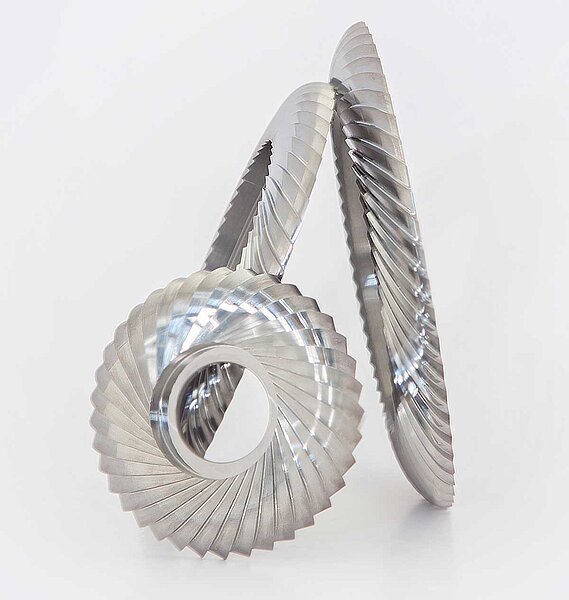

Milling rings for bevelling and scrubbing are available in diameters of 70, 116 and 125 mm and are used for bevelling, leveling of welds and general scrubbing. Suitable materials are all non-ferrous metals, carbon/fiberglass, plastics and wood.
Each material requires a unique tooth profile. You may use an aluminum milling ring for other materials as well, but with limited performance.
Our standard product range is designed for aluminum and if you need milling rings for other materials please contact us.
Base support
The base support Universal has a bore diameter of 22.23 mm (7/8") and fits to all electrical and pneumatical grinders with or without mounting flange depending on the type. It is supplied with a countersunk screw to fit on pneumatic turbo-grinders.
With a base support M 14 the milling rings may be mounted to many angle grinder with a M 14 thread not requiring an additional mounting flange.
Reference table milling rings
| Item number | Designation | Weight |
|---|---|---|
| 20,001,0,070 | Milling ring 70 mm - Z36/25°-Alu | 0,3 kg |

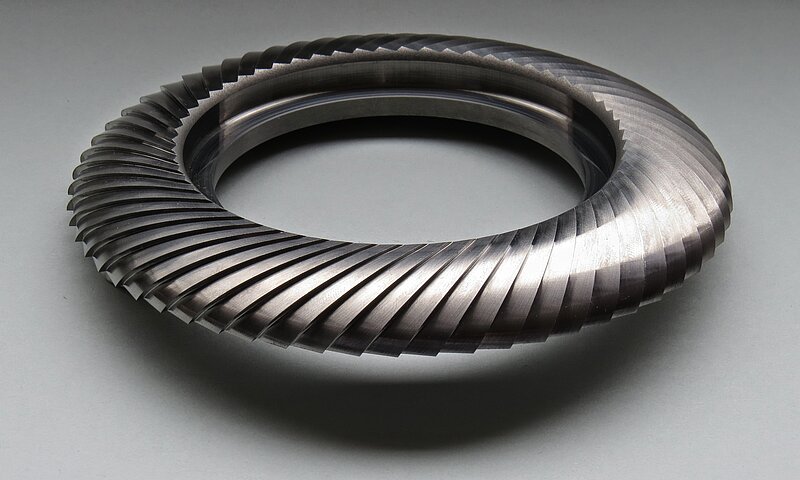

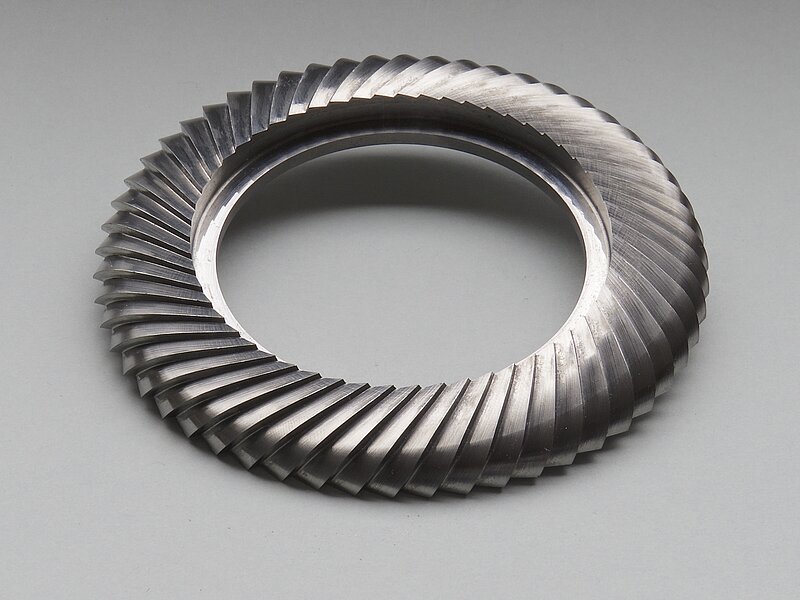

| 20,001,0,116 | Milling ring 116 mm - Z55/38°-Alu | 0,6 kg |

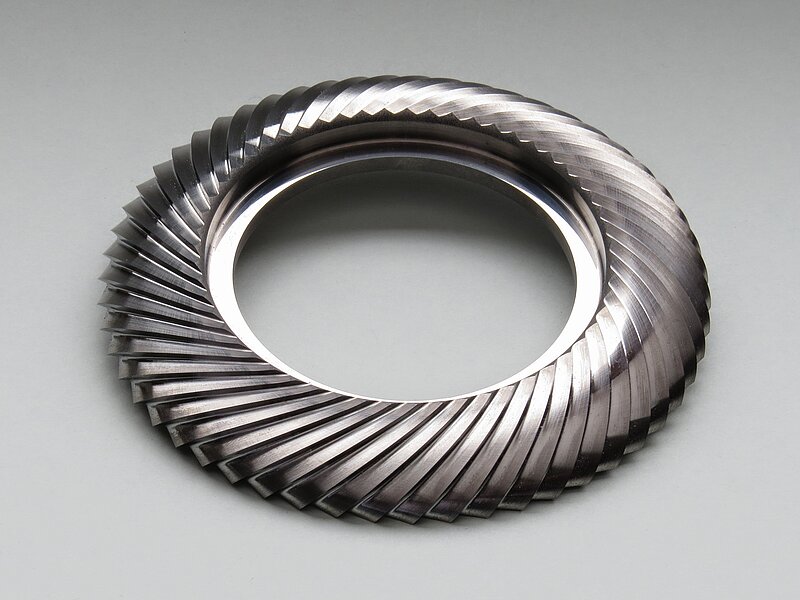

| 20,001,0,125 | Milling ring 125 mm - Z55/38°-Alu | 0,8 kg |
| 29,020,0,070 | Base support milling ring 70 mm/M 14 | 0,05 kg |
| 29,020,1,070 | Base support milling ring 70 mm/3/8" | 0,05 kg |
| 29,020,0,116 | Base support milling ring 116-125 mm/M 14 | 0,1 kg |
| 29,020,1,116 | Base support milling ring 116-125 mm/Universal | 0,1 kg |
| 29,000,0,002 | Retainer nut 116-125 mm | 0,05 kg |
| 29,000,0,004 | Retainer nut 70 mm, M14 | 0,02 kg |
| 29,000,0,003 | Countersunk bolt M8x35 zinc coated GTG | 0,01 kg |
| 29,000,0,001 | Reusable transport box | 0,05 kg |
Milling ring sets
Our sets contain a single sided milling ring with the relevant diameter, the base support (M 14 or Universal), the retainer nut and the reusable transport box.
Reference table milling ring sets
| Item number | Designation | Base support |
|---|---|---|
| 20,002,0,070 | Set milling ring 70 mm - Z36/25°-Alu M14 | M 14 |
| 20,002,0,116 | Set milling ring 116 mm - Z55/38°-Alu M14 | M 14 |
| 20,002,0,125 | Set milling ring 125 mm - Z55/38°-Alu M14 | M 14 |
| 20,003,0,116 | Set milling ring 116 mm - Z55/38°-Alu Universal | Universal (22,23 mm) |
| 20,003,0,125 | Set milling ring 125 mm - Z55/38°-Alu Universal | Universal (22,23 mm) |
Resharpening
Our milling rings may be resharpened 5-7 times.
| Item number | Designation |
|---|---|
| 21,001,0,070 | Resharpening milling ring 70 mm/Alu |
| 21,001,0,116 | Resharpening milling ring 116 mm/Alu |
| 21,001,0,125 | Resharpening milling ring 125 mm/Alu |
Our stock
| Designation | Item number | Weight [kg] | Qty in stock |
|---|---|---|---|
| Milling disc 70 mm - Z36/25°-Alu | 20,001,0,070 | 0.3 | 5 |
| Milling disc 116 mm - Z55/38°-Alu | 20,001,0,116 | 0.6 | 4 |
| Milling disc 125 mm - Z55/38°-Alu | 20,001,0,125 | 0.8 | 7 |
