What is MA-5356 (ER5356) used for?

MA-5356 (AlMg5Cr, ER5356) is an aluminium welding wire with seawater-resistant weld metal, suitable for nearly colour-matched welds on anodised components. Chromium refines the grain and reduces solidification cracking. Typical base materials: EN AW-5083 and EN AW-5086 (AlMg4.5Mn / AlMg4), EN AW-5754 and EN AW-5052 (AlMg3 / AlMg2.5), AlMgSi alloys such as EN AW-6060, EN AW-6061 and EN AW-6063, and AlZnMg alloys such as EN AW-7020.

  • Classification: EN ISO 18273: S Al 5356 (AlMg5Cr(A)); AWS A5.10: ER5356; material no. 3.3556
  • Weld metal (typical): Rm 250 MPa; Rp0.2 120 MPa; A5 18 %
  • Approvals: DNV, Lloyd's Register, Bureau Veritas, ABS, Korean Register, TÜV, Deutsche Bahn (DB)
  • Diameters: MIG wire 0.8–2.4 mm, TIG rods 1.6–5.0 mm (1,000 mm long)
  • Packaging: spools from 0.5 kg (S 100) to 40 kg (B 400); drums: Jumbo drum 140 kg, Jumbo XL drum 240 kg; TIG rods in 2.5 kg tubes or 5/10 kg boxes

Datasheet - Rod/wire electrode for Aluminium

Typical composition in %
Si < 0,25
Fe < 0,40
Cu < 0,10
Mn 0,05 - 0,20
Mg 4,50 - 5,50
Cr 0,05 - 0,20
Zn < 0,10
Be < 0,0003
Ti 0,06 - 0,20
Others < 0,05
Others total < 0,15
Classification
EN ISO 18273 S Al 5356 (AlMg5Cr(A))
Material No. 3.3556
AWS A 5-10 ER 5356
JIS Z3232 A5356
Remarks

The weld metal is sea water resistant. Suitable for anodizing when matching colours are required.

Use our  material calculator to find the suitable filler wire for your welding application.

Physical properties of pure weld metal (Approx. values)
0,2 % yield strength Rp0,2 [MPa] 120
Tensile strength Rm [MPa] 250
Elongation A5 (Lo=5d0) [%] 18
Test temperature [°C] 20
Welding position
PA, PB, PC, PD, PE, PF
PA
PA
PA
PA
PB
PB
PC
PC
PC
PC
PD
PD
PE
PE
PE
PE
PF
PF
PF
PF
Shielding gas
I1, I2, I3 (Argon, Helium or Argon/Helium-mixtures)
Polarity
MIG =+, WIG ~
Approvals

TÜV, DB, Lloyds Register, DNV-GL, Bureau Veritas, ABS, KR

For DB:

  1. On above Link
  2. Under FILLER METAL click "Search"
  3. Select under manufacturer MIGAL.CO GmbH
  4. Press the Search button
  5. Select the PDF



Dimensions
MIG-wires [mm] 0,8; 1,0; 1,2; 1,6; 2,0; 2,4
TIG-rods [mm] 1,6; 2,0; 2,4; 3,2; 4,0; 5,0
Packaging
Spools Packaging units
S 100 / 0,5 kg 20 spools = 10 kg (Box)
S 200 / 2 kg 4 spools = 8 kg (Box)
S 300 / 6 kg 56 spools = 336 kg (Pallet)
B 300 / BS 300 / 7 kg 56 spools = 392 kg (Pallet)
B 400 / 18 kg 28 spools = 504 kg (Pallet)
B 400 / 40 kg 15 spools = 600 kg (Pallet)
S-100 0,5 kg
S-100 0,5 kg

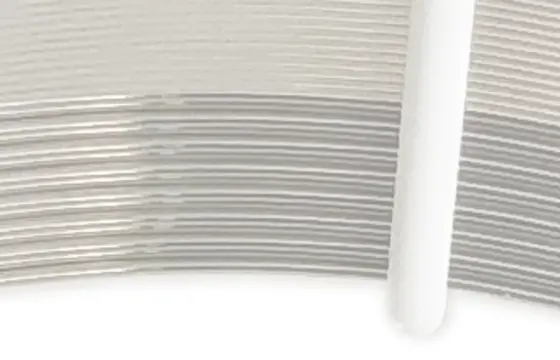

S-200 2 kg
S-200 2 kg
S-300 6 kg
S-300 6 kg
B-300 7 kg
B-300 7 kg
BS-300 7 kg
BS-300 7 kg
B-400 18 kg
B-400 18 kg
B-400 40 kg
B-400 40 kg
S-200 vacuum-packed
S-200 vacuum-packed
S-300 vacuum-packed
S-300 vacuum-packed
B-300 vacuum-packed
B-300 vacuum-packed
BS-300 vacuum-packed
BS-300 vacuum-packed
B-400 18 kg vacuum-packed
B-400 18 kg vacuum-packed
B-400 40 kg vacuum-packed
B-400 40 kg vacuum-packed
S-200 box
S-200 box
B-300, BS-300, S-300 box
B-300, BS-300, S-300 box
B-400 18 kg box
B-400 18 kg box
B-400 40 kg box
B-400 40 kg box
Drums Packaging units
Jumbo-drum 140 kg 2 drums = 280 kg (Pallet)
Jumbo XL-drum 240 kg 1 drum = 240 kg (Pallet)
Jumbo-drum
140 kg
Jumbo XL-drum 240 kg
Jumbo XL-drum 240 kg
TIG-rods Packaging units
2,5 kg tube 225 tubes = 562,5 kg (Pallet)
5 kg box 120 boxes = 600 kg (Pallet)
10 kg box 60 boxes = 600 kg (Pallet)
Tube 2,5 kg
Tube 2,5 kg
Box 10 kg
Box 10 kg

TIG-rods are packed in tubes of 2,5 kg or in boxes of 5 or 10kg. The length is 1.000 mm. Each rod is stamped on one side with MIGAL.CO and the alloy number.

MIG wires

Designation Item number Quantity in
stock [kg]
Wire electrode MA-5356 AlMg5 D=0,8mm M4,5356,01,08 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,01,12 Not in stock
Wire electrode MA-5356 AlMg5 D=0,8mm M4,5356,02,08 56
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,02,10 150
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,02,12 26
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,02,16 Not in stock
Wire electrode MA-5356 AlMg5 D=0,8mm M4,5356,03,08 6
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,03,10 1091
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,03,10,M 28
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,03,12 84
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,03,12,M 62
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,03,16 287
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,03,16,M 4
Wire electrode MA-5356 AlMg5 D=2,0 mm M4,5356,03,20 70
Wire electrode MA-5356 AlMg5 D=2,4mm M4,5356,03,24 Not in stock
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,04,10 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,04,12 Not in stock
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,04,16 Not in stock
Wire electrode MA-5356 AlMg5 D=2,0mm M4,5356,04,20 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,05,12 576
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,05,16 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,06,12 200
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,06,16 Not in stock
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,07,10 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,07,12 Not in stock
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,07,16 Not in stock
Wire electrode MA-5356 AlMg5 D=1,0mm M4,5356,08,10 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,08,12 700
Wire electrode MA-5356 AlMg5 1,6mm M4,5356,08,16 420
Wire electrode MA-5356 AlMg5 D=1,6mm M4,5356,09,16 Not in stock
Wire electrode MA-5356 AlMg5 D=1,2mm M4,5356,11,12 Not in stock
Wire electrode MA-5356 AlMg5 1,6mm M4,5356,11,16 Not in stock

TIG rods

Designation Item number Quantity in
stock [kg]
TIG-rods MA-5356 AlMg5 D=1,6mm M4,5356,12,16 265
TIG-rods MA-5356 AlMg5 D=2,0mm M4,5356,12,20 120
TIG-rods MA-5356 AlMg5 D=2,4mm M4,5356,12,24 480
TIG-rods MA-5356 AlMg5 D=3,2mm M4,5356,12,32 495
TIG-rods MA-5356 AlMg5 D=1,6mm M4,5356,13,16 330
TIG-rods MA-5356 AlMg5 D=2,0mm M4,5356,13,20 990
TIG-rods MA-5356 AlMg5 D=2,4mm M4,5356,13,24 650
TIG-rods MA-5356 AlMg5 D=3,2 mm M4,5356,13,32 720
TIG-rods MA-5356 AlMg5 D=4,0mm M4,5356,13,40 620
TIG-rods MA-5356 AlMg5 D=5,0 mm M4,5356,13,50 90
TIG-rods MA-5356 AlMg5 D=1,6mm M4,5356,14,16 152
TIG-rods MA-5356 AlMg5 D=2,0mm M4,5356,14,20 145
TIG-rods MA-5356 AlMg5 D=2,4mm M4,5356,14,24 32
TIG-rods MA-5356 AlMg5 D=3,2mm M4,5356,14,32 127
TIG-rods MA-5356 AlMg5 D=4,0mm M4,5356,14,40 Not in stock
