Datasheet - Rod/wire electrode for Aluminium

Typical composition in %
Si 6,50 - 7,50
Fe < 0,20
Cu < 0,05
Mn < 0,10
Mg 0,50 - 0,80
Zn < 0,10
Be < 0,0003
Ti 0,10 - 0,20
Others < 0,05
Others total < 0,15
Classification
EN ISO 18273 S Al 4018 (AlSi7Mg)
Material No. 3.2371
Remarks

Welding of sand and permanent mould castings. The physical properties can be improved by heat treatment.

Use our  material calculator to find the suitable filler wire for your welding application.

Physical properties of pure weld metal (Approx. values)
0,2 % yield strength Rp0,2 [MPa] F: 80, T6: 250
Tensile strength Rm [MPa] F: 140, T6: 310
Elongation A5 (Lo=5d0) [%] F: 2, T6: 4
Test temperature [°C] 20
Welding position
PA, PB, PC, PD, PE, PF
PA
PA
PA
PA
PB
PB
PC
PC
PC
PC
PD
PD
PE
PE
PE
PE
PF
PF
PF
PF
Shielding gas
I1, I2, I3 (Argon, Helium or Argon/Helium-mixtures)
Polarity
MIG =+, WIG ~
Dimensions
MIG-wires [mm] 1,2; 1,6; 2,0; 2,4
TIG-rods [mm] 1,6; 2,0; 2,4; 3,2; 4,0; 5,0
Packaging
Spools Packaging units
S 100 / 0,5 kg 20 spools = 10 kg (Box)
S 200 / 2 kg 4 spools = 8 kg (Box)
S 300 / 6 kg 56 spools = 336 kg (Pallet)
B 300 / BS 300 / 7 kg 56 spools = 392 kg (Pallet)
B 400 / 18 kg 28 spools = 504 kg (Pallet)
B 400 / 40 kg 15 spools = 600 kg (Pallet)
S-100 0,5 kg
S-100 0,5 kg
S-200 2 kg
S-200 2 kg
S-300 6 kg
S-300 6 kg
B-300 7 kg
B-300 7 kg
BS-300 7 kg
BS-300 7 kg
B-400 18 kg
B-400 18 kg
B-400 40 kg
B-400 40 kg
S-200 vacuum-packed
S-200 vacuum-packed
S-300 vacuum-packed
S-300 vacuum-packed
B-300 vacuum-packed
B-300 vacuum-packed
BS-300 vacuum-packed
BS-300 vacuum-packed
B400-18 kg vacuum-packed
B400-18 kg vacuum-packed
B-400 40 kg vacuum-packed
B-400 40 kg vacuum-packed
S-200 box
S-200 box
B-300, BS-300, S-300 box
B-300, BS-300, S-300 box
B400-18 kg box
B400-18 kg box
B-400 40 kg box
B-400
40 kg box
Drums Packaging units
Eco drum 80 kg 2 drums = 160 kg (Pallet)
Jumbo-Drum / 140 kg 2 drums = 280 kg (Pallet]
Jumbo XL-Drum / 240 kg 1 drum = 240 kg (Pallet]
ECO-drum 80 kg
ECO-drum 80 kg
Jumbo-drum 140 kg
Jumbo-drum 140 kg

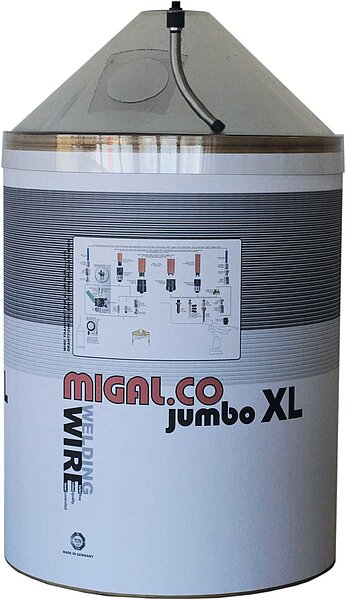

Jumbo XL-drum 240 kg
Jumbo XL-drum 240 kg
TIG-rods Packaging units
2,5 kg tube 225 tubes = 562,5 kg (Pallet)
5 kg box 120 boxes = 600 kg (Pallet)
10 kg box 60 boxes = 600 kg (Pallet)
Tube 2,5 kg
Tube 2,5 kg
Box 10 kg
Box 10 kg

TIG-rods are packed in tubes of 2,5 kg or in boxes of 5 or 10kg. The length is 1.000 mm. Each rod is stamped on one side with MIGAL.CO and the alloy number.

MIG wires

Designation Item number Quantity in
stock [kg]
Wire electrode MA-4018 AlSi7Mg D=1,2mm M3,4018,03,12 84
Wire electrode MA-4018 AlSi7Mg D=1,6mm M3,4018,03,16 441
Wire electrode MA-4018 AlSi7Mg D=1,2mm M3,4018,04,12 Not in stock
Wire electrode MA-4018 AlSi7Mg D=1,6mm M3,4018,04,16 Not in stock
Wire electrode MA-4018 AlSi7Mg D=1,2mm M3,4018,09,12 Not in stock

TIG rods

Designation Item number Quantity in
stock [kg]
TIG-rods MA-4008 AlSi7Mg D=1,6mm M3,4018,13,16 330
TIG-rods MA-4008 AlSi7Mg D=2,0mm M3,4018,13,20 360
TIG-rods MA-4008 AlSi7Mg D=2,4mm M3,4018,13,24 110
TIG-rods MA-4018 AlSi7Mg D=3,2mm M3,4018,13,32 690
TIG-rods MA-4018 AlSi7Mg D=4,0mm M3,4018,13,40 280
TIG-rods MA-4018 AlSi7Mg D=5,0mm M3,4018,13,50 260
