Connector for drum hoods

Drum connector AER-201
Drum connector AER-201

A connector is required to attach the conduit to the drum hood. This provides a 1/4" internal thread and a 1/2" external thread. All conduits from our product range can be connected.

There are 2 variants:

  • AER-201 plastic insert for non-ferrous wires
  • AER-201-K ceramic insert for steel wires.

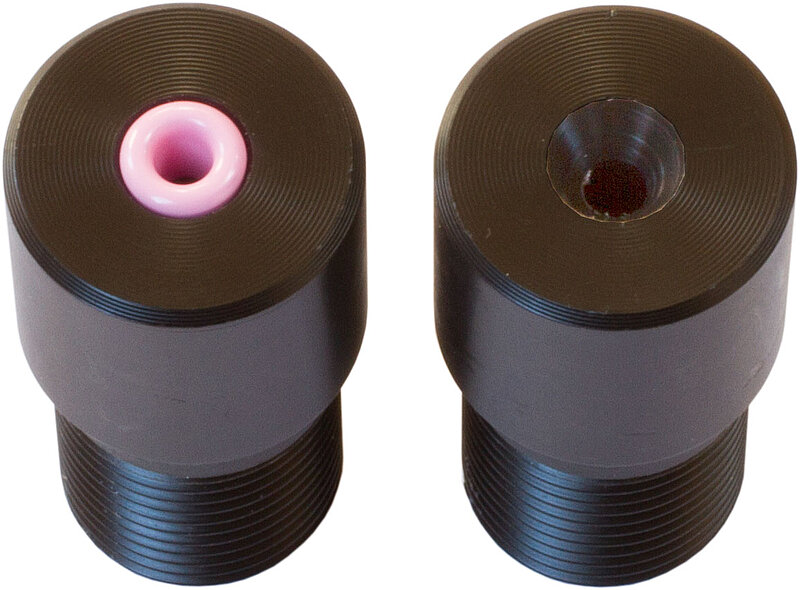

AER-201-K and AER-201
AER-201-K and AER-201

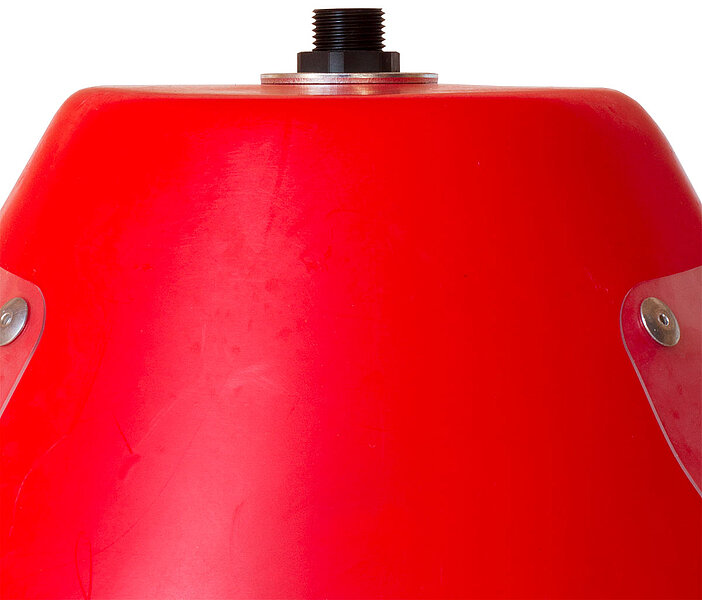

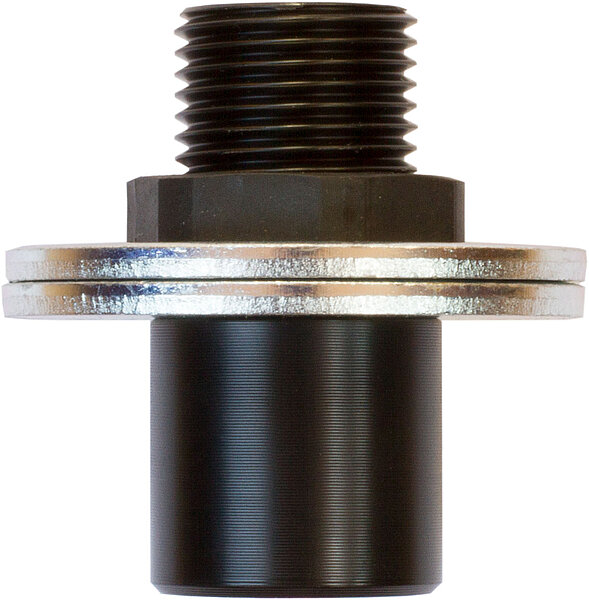

AER 201 assembled - sideview of the connector assembled to the hood
AER 201 assembled - sideview of the connector assembled to the hood

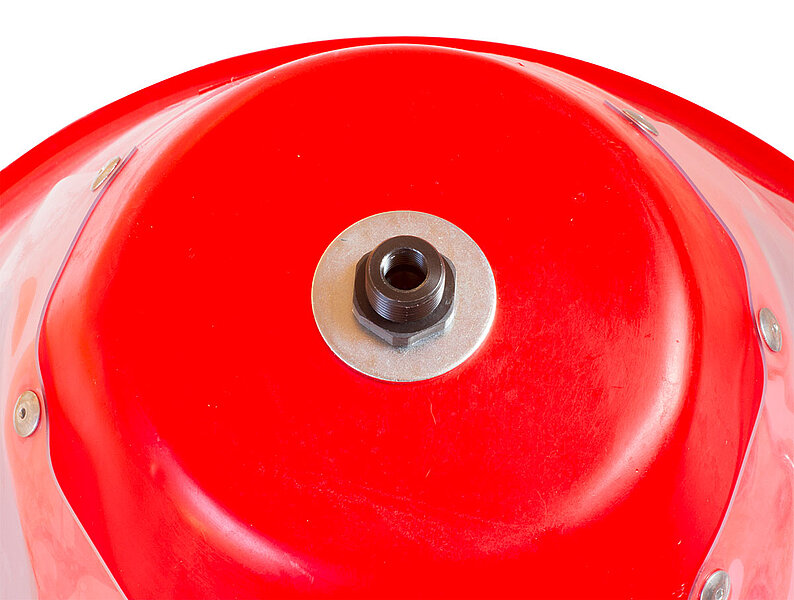

AER 201 - Connector for drum hood complete
AER 201 - Connector for drum hood complete

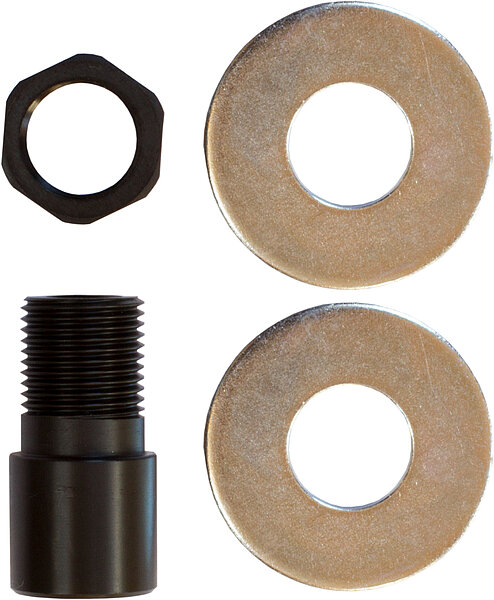

Individual parts of drum connector AER 201
Individual parts of drum connector AER 201

Reference table

Drum connector

Designation Item number Qty in stock Weight [kg]
Connector drum hood AER201 10,10,5,0005 61 0.05
Connector drum hood AER201-K 10,10,5,0006 86 0.05
